Ex i ... 8 V DC inductive limit switch boxes 2 - 6 sensors for rotary- and linear actuators

The positions of industrial valves must be secured multiple times in certain cases or situations.

Furthermore in addition to the usual positions such as open and closed, intermediate

positions such as 45 ° or 60 ° are also required for special applications.

4 examples of these special limit switch boxes are shown below.

- 45 °C Ex i ... 8 V DC inductive limit switch box for rotary actuator

with 6 sensors, aluminium housing, dimensions: 160x160x90 mm

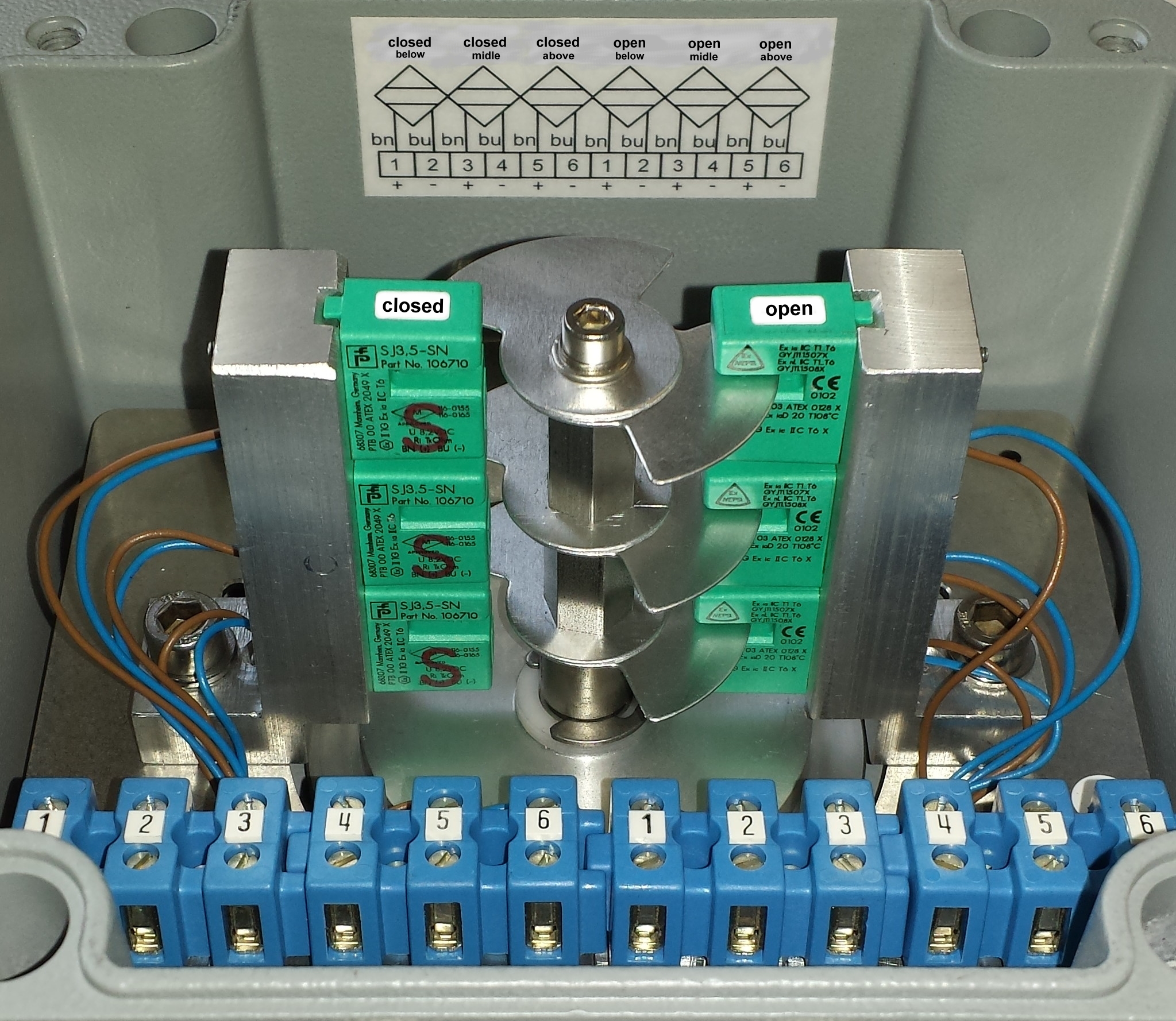

Image 1: 6x Pepperl+Fuchs sensor Ex i ... 8 V DC SJ 3,5-SN connected to 6x 2-pole mini-terminals for position 3x closed and 3x open.

• Documentation limit switch boxes

• EU-type examination certificate limit switch boxes

• EU-declaration of conformity limit switch boxes

• Data sheet brackets size 1 - 4

Ex i ... 8 V DC inductive limit switch box for rotary actuator

with 4 sensors, aluminium housing, dimensions: 160x160x90 mm

Image 2: 4x P+F Ex i ... 8 V DC SJ 3,5-SN connected to 4x 2-pole mini-terminals for position 2x closed and 2x open.

• Documentation limit switch boxes

• EU-type examination certificate limit switch boxes

• EU-declaration of conformity limit switch boxes

• Data sheet brackets size 1 - 4

Ex i ... 8 V DC inductive limit switch box for linear actuator

with 3 sensors, polyester housing, dimensions: 160x160x90 mm

Image 3: 3x P+F Ex i ... 8 V DC SJ 3,5-S1N connected to 3x 2-pole mini-terminals for position 1x closed and 2x closed.

• Documentation limit switch boxes

• EU-type examination certificate limit switch boxes

• EU-declaration of conformity limit switch boxes

• Data sheet brackets size 1 - 4

• Data sheet mounting set

Ex i ... 8 V DC inductive limit switch box for linear actuator

with 3 sensors, polyester housing, dimensions: 220x120x90 mm

Image 4: 3x P+F Ex i ... 8 V DC SJ 3,5-N connected to 3x 2-pole mini-terminals for position 0°, 120° and 240°

• Documentation limit switch boxes

• EU-type examination certificate limit switch boxes

• EU-declaration of conformity limit switch boxes

• Data sheet brackets size 1 - 4

• Data sheet mounting set
